Product Summary

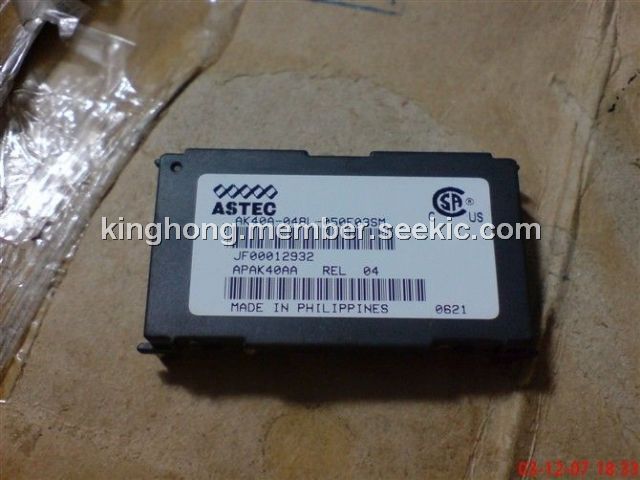

The AK40A-048L-050F03SM is a DC/DC Converter.
Parametrics
AK40A-048L-050F03SM absolute maximum ratings: (1)Input Range: 36 to 75 VDC; (2)Maximum Inrush Current Limit: 1.0 A Max; (3)Maximum External Capacitor to Limit: 4.0mF; (4)Low Input Shutdown: 34.0V ±2.0V; (5)Auto Recovery: 37.0V ±2.0V; (6)Hysteresis: 3.0V ±1.0V; (7)Efficiency: 85%; (8)Enable: Open Circuit or up to 0.5V max.; (9)Disable: 4V min, 75V max; (10)Voltage Tolerance: ±3% for single output; (11)Noise/Ripple: 75mVrms max.; (12)Output Voltage Adjust Range: ±10% for single output; (13)Overvoltage Protection: Self limiting Clamp, 140% max; (14)Short Circuit Protection: Continuous Auto Start; (15)Switching Frequency: 200kHz nominal.
Features
AK40A-048L-050F03SM features: (1)Surface Mount; (2)High Power Desnity 15W/Cu. in.; (3)Full power capability without external heatsink; (4)Input differential and common mode filtering; (5)Hot insertable with inrush current limit; (6)Ability to limit inrush current in an external capcacitor; (7)Input undervoltage lockout with hysteresis; (8)Output overvoltage protection; (9)Remote shutdown.

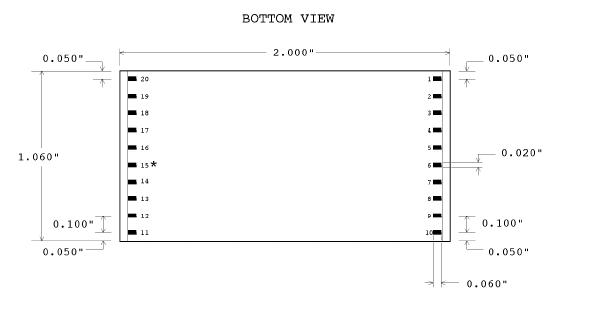

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AK40A-048L-050F03SM |
CONV DC-DC 15W 48VIN 5.0VOUT SMD |
Data Sheet |
Negotiable |
|
||||||||||||||||||||||||
