Product Summary

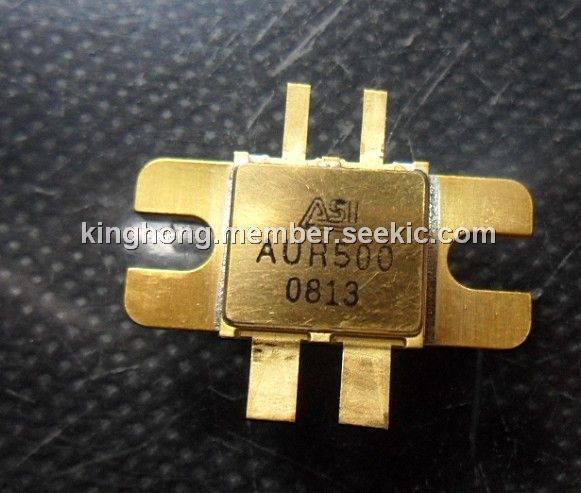

The AUR500 is an NPN silicon RF power transistor. The AUR500 is Designed for UHF Radar and Pulsed signal apps

Parametrics

AUR500 absolute maximum ratings: (1)IC: 43.2 A; (2)VCBO: 65 V; (3)VCES: 65 V; (4)VEBO: 3.5 V; (5)PDISS: 1167 W @ TC = 25℃; (6)TJ: -65℃ to +200℃; (7)TSTG: -65℃ to +150℃; (8)θJC: 0.15℃/W .

Features

AUR500 features: (1)Input Matching Network; (2)Omnigold Metalization System.

Diagrams

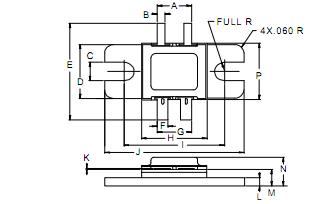

AUR500 dimensions
