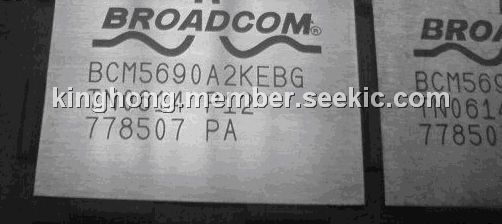

Product Summary

The BCM5690A2KEBG network switch is a scalable, modular chip solution with 12 ports. It has a fully integrated SerDes functionality consisting of a 10 Gbps XAUI HiGig Port, Gigabit Ethernet or a SGMII PHY interface.

Features

BCM5690A2KEBG features: (1)12 10/100/1000 Mbps Ethernet ports supporting both copper and fiber connections; (2)Single 10 Gbps XAUI HiGig expansion port; (3)Gigabit Ethernet SerDes per port; (4)4-pin per port SGMII interface to Gigabit Ethernet PHYs ; (5)32 million packets/second (line rate) aggregate switching capacity; (6)Supports 8 classes of service (CoS) per port; (7)Scalable upto 32 BCM5690 switches in a system ; (8)Port trunking and mirroring supported across stacked switches; (9)Fully integrated data and address memory on chip; (10)Support for jumbo Frames of up to 9 KB; (11)Advanced diagnostic features including IEEE1149.1 JTAG boundary scan and BIST functionality; (12)Low power, enhanced thermal 480-pin EBGA package.

Diagrams

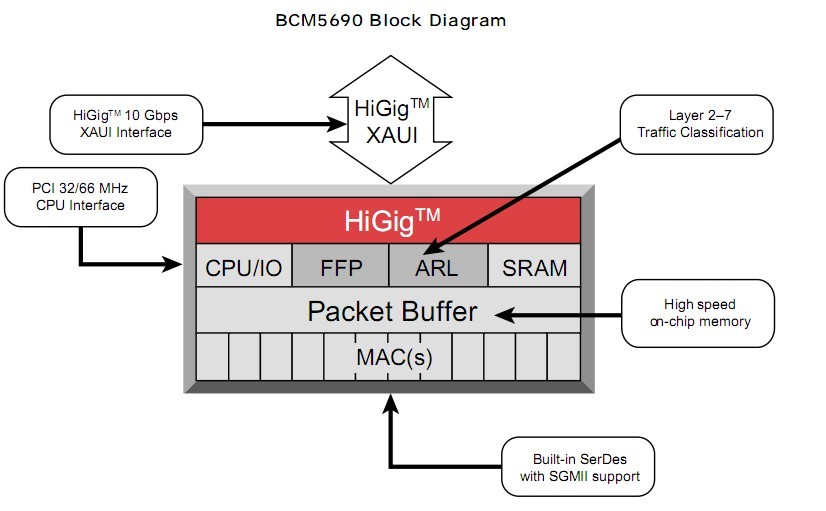

BCM5690A2KEBG block diagram
