Product Summary
The 2SK410 is a Silicon N-Channel MOSFET. The applications of the 2SK410 include HF/VHF power amplifier.
Parametrics
2SK410 absolute maximum ratings: (1)Drain to source voltage: 180 V; (2)Gate to source voltage: ±20 V; (3)Drain current: 8 A; (4)Channel dissipation Pch*1: 120 W; (5)Channel temperature: 150 ℃; (6)Storage temperature: –55 to +150 ℃.
Features
2SK410 features: (1)High breakdown voltage; (2)You can decrease handling current.; (3)Included gate protection diode; (4)No secondary–breakdown; (5)Wide area of safe operation; (6)Simple bias circuitry; (7)No thermal runaway.

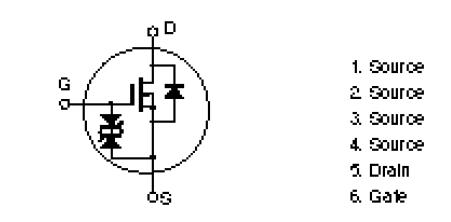

Diagrams
