Product Summary
The TSS8J48SR is a solid state AC relay.
Parametrics
TSS8J48SR absolute maximum ratings: (1)control input voltage, VF(IN): 5.5V; (2)peak one cycle surge on-state current, ITSM: 80A; (3)operating frequency range, f: 45-65 Hz; (4)operating temperature range, Topr: -20 to 80℃; (5)storage temperature range, Tstg: -30 to 80℃.
Features
TSS8J48SR features: (1)RMS on-state current: OT(RMS)=8A; (2)non-repetitive peak off-state votlage: VDSM=400,600V; (3)TTL compatible; (4)including snubber network.

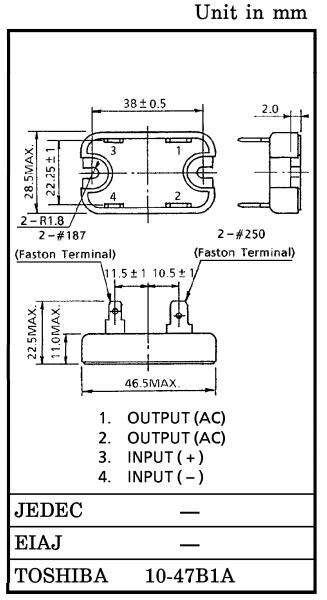

Diagrams
