Product Summary

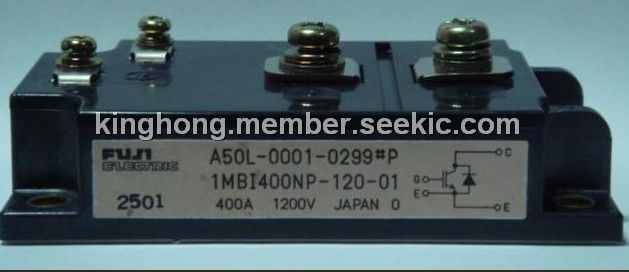

The 1MBI400NP-120-01 is an IGBT module. Applications include: High Power Switching, A.C. Motor Controls, D.C. Motor Controls, Uninterruptible Power Supply.

Parametrics

1MBI400NP-120-01 absolute maximum ratings: (1)Collector-Emitter Voltage VCES: 1200 V; (2)Gate -Emitter Voltage VGES: ± 20 V; (3)Collector current Continuous IC: 400 A; 1ms IC PULSE: 800 A; Continuous -IC: 400 A; 1ms -IC PULSE: 800 A; (4)Max. Power Dissipation PC: 3100 W; (5)Operating Temperature Tj: +150 ℃; (6)Storage Temperature Tstg: -40 to +125 ℃; (7)Isolation Voltage A.C. 1min. Vis: 2500 V.

Features

1MBI400NP-120-01 features: (1)Square RBSOA; (2)Low Saturation Voltage; (3)Less Total Power Dissipation; (4)Improved FWD Characteristic; (5)Minimized Internal Stray Inductance; (6)Overcurrent Limiting Function (4~5 Times Rated Current).
