Product Summary

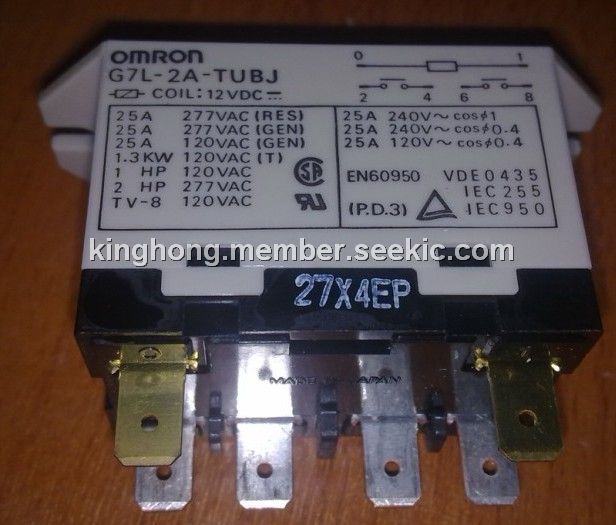

The G7L-2A-TUBJ-12VDC is a general purpose relay.
Parametrics
G7L-2A-TUBJ-12VDC absolute maximum ratings: (1)Rated load: 25 A, 220 VAC; (2)Contact material: AgSnIn; (3)Carry current: 25 A; (4)Max. operating voltage: 250 VAC; (5)Max. operating current: 25 A; (6)Max. switching capacity: 5,500 VA; (7)Min. permissible load: 100 mA, 5 VDC (please inquire for lower minimum rating).
Features
G7L-2A-TUBJ-12VDC features:(1)Ideally suited for high-inrush fluid pump controls: pool/spa, water processing, emergency, chemical industry, etc; (2)High-capacity, high-withstand voltage relay with no contact chattering for momentary voltage drops up to 50% of rated voltage; (3)UL Class B construction standard; (4)Wide-range AC-activated coil that handles 100 to 120 VAC at either 50 or 60 Hz; (5)Miniature hinge for maximum switching capacity, particularly for inductive loads; (6)Flame resistant materials (UL94V-0-qualifying) used for all insulation material; (7)Quick-connect, screw, and PCB terminals available; (8)Standard models are UL, CSA, and TUV approved; VDE/IEC 950 versions are now available. Meet pollution degree 3, Material Group II & III.
Diagrams
 |
