Product Summary
The TIM4450-4UL is a microwave power GaAs FET.
Parametrics
TIM4450-4UL absolute maximum ratings: (1)Drain-Source Voltage, VDS: 15V; (2)Gate-Source Voltage, VGS: -5V; (3)Drain Current, IDS: 3.5A; (4)Total Power Dissipation, PT: 25℃; (5)Channel Temperature Tch: 175℃; (6)Storage, Tstg: -65 to +175℃.
Features
TIM4450-4UL features: (1)high power: P1dB=36.5dBm at 4.4GHz to 5.0GHz; (2)broad band internally matched FET; (3)high gain: G1dB=11.0dB at 4.4GHz to 5.0GHz; (4)hermetically sealed package.

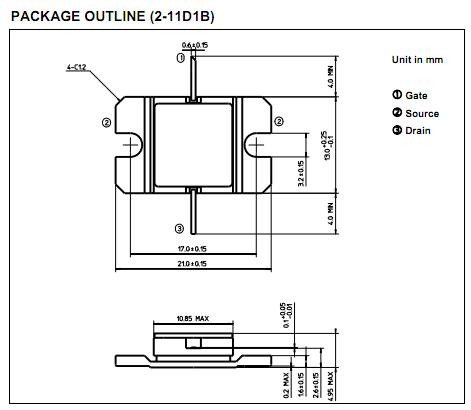

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TIM4450-4UL |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
