Product Summary

The UM201 is a Microsemi Power PIN diode. It is perfect for the high power switching applications where size and power handling capability are critical. The applications of the UM201 are MRI Applications and High Power Antenna Switching.

Parametrics

UM201 absolute maximum ratings: (1)Maximum Reverse Voltage 1000/1500/2000 V; (2)Average Power Dissipation @ Stud = 50℃ 13 W; (3)Non-Repetitive Sinusoidal Surge Current (8.3 ms) 100 A; (4)Storage Temperature Range 65 to +175℃; (5)Operating Temperature Range 55 to +150℃; (6)Thermal Resistance 7.5℃/ W.

Features

UM201 features: (1)High Power Stud Mount Package; (2)High Zero Bias Impedance; (3)Very Low Inductance and Capacitance; (4)No Internal Lead Straps; (5)Small Mechanical Outline.

Diagrams

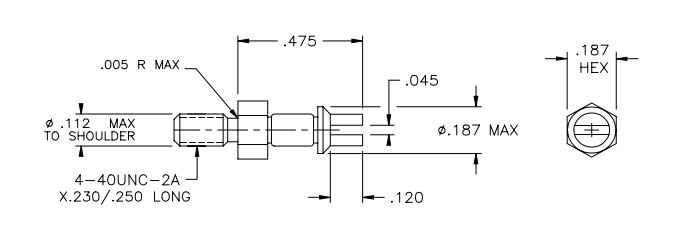

UM201 dimensions
