Product Summary
The SAB-C167CR-LM is a new derivative of the Siemens C16x Family of full featured single-chip CMOS microcontrollers. It combines high CPU performance (up to 10 million instructions per second) with high peripheral functionality and enhanced IO-capabilities. SAB-C167CR-LM also provides on-chip high-speed RAM and clock generation via PLL.
Parametrics
SAB-C167CR-LM absolute maximum ratings: (1)Ambient temperature under bias (TA): SAB-C167CR-LM: 0 to + 70 ℃; SAF-C167CR-LM: - 40 to + 85 ℃; SAK-C167CR-LM: - 40 to + 125 ℃; (2)Storage temperature (TST): - 65 to + 150 ℃; (3)Voltage on VCC pins with respect to ground (VSS): - 0.5 to + 6.5 V; (4)Voltage on any pin with respect to ground (VSS): - 0.5 to VCC + 0.5 V; (5)Input current on any pin during overload condition: - 10 to + 10 mA; (6)Absolute sum of all input currents during overload condition: 100 mA; (7)Power dissipation: 1.5 W.
Features
SAB-C167CR-LM features: (1)High Performance 16-bit CPU with 4-Stage Pipeline; (2)100 ns Instruction Cycle Time at 20 MHz CPU Clock; (3)500 ns Multiplication (16 16 bit), 1 ms Division (32 / 16 bit); (4)Enhanced Boolean Bit Manipulation Facilities; (5)AdditionaInstructions to Support HLL and Operating Systems; (6)Register-Based Design with Multiple Variable Register Banks; (7)Single-Cycle Context Switching Support; (8)Clock Generation via on-chip PLL or via direct clock input; (9)Up to 16 MBytes Linear Address Space for Code and Data; (10)2 KBytes On-Chip InternaRAM (IRAM); (11)2 KBytes On-Chip Extension RAM (XRAM); (12)Programmable ExternaBus Characteristics for Different Address Ranges; (13)8-Bit or 16-Bit ExternaData Bus; (14)Multiplexed or Demultiplexed ExternaAddress/Data Buses; (15)Five Programmable Chip-Select Signals; (16)Hold- and Hold-Acknowledge Bus Arbitration Support; (17)1024 Bytes On-Chip SpeciaFunction Register Areal On-Chip Bootstrap Loader; (18)144-Pin MQFP Package (EIAJ); (19)Idle and Power Down Modes.

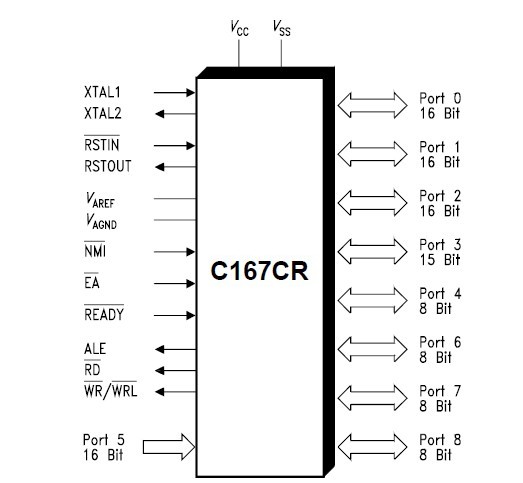

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SAB-C167CR-LM HA+ |
Infineon Technologies |
16-bit Microcontrollers (MCU) 16BIT ROM/ROMLESS |
Data Sheet |
Negotiable |
|
||||||||||
