Product Summary

The 100NH00M is an NH DIN Low Voltage Fuse System from Cooper Bussmann.

Parametrics

100NH00M absolute maximum ratings: (1)Voltage - Rated 500VAC; (2)Current 160A.

Features

100NH00M features: (1)High Breaking Capacity; (2)400Vac, 500Vac and 690Vac; (3)Insulated Tag variants available; (4)Dual Indication; (5)VDE 0636 Part 1; (6)DIN 43 620 Parts 1 to 4 (Standard Dimensions).

Diagrams

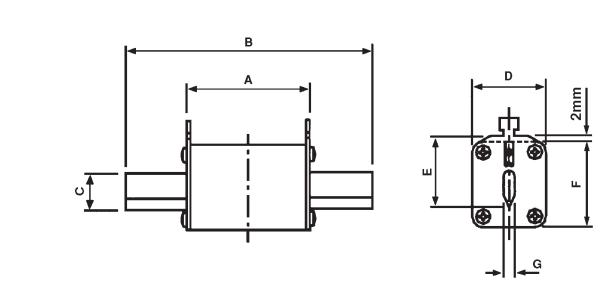

100NH00M dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

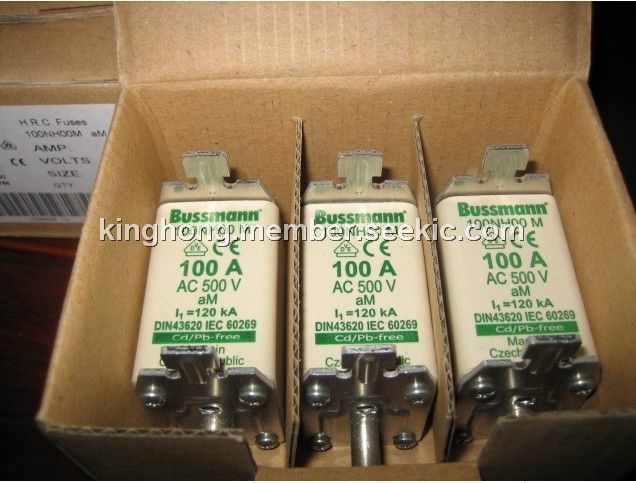

100NH00M
100NH00M


FUSE 100A 500V CLASS AM

Data Sheet

Negotiable
