Product Summary

The PH75F48-5 is a Full function, 50 to 300W DC-DC converter.

Parametrics

PH75F48-5 absolute maximum ratings: (1)Type Step Down; (2)Output Current 15 A; (3)Output Voltage 5 V; (4)Input Voltage 48 V; (5)Number of Outputs 1; (6)Output Power 75 W; (7)Switching Regulator Yes.

Features

PH75F48-5 features: (1)High Density; (2)Wide Range Input; (3)Wide output adjustment capability; (4)Remote On/Off; (5)Fixed Switching Frequency; (6)International Safety Approvals; (7)Parallel Operation; (8)Low component count; (9)Signals to support N+1 redundancy.

Diagrams

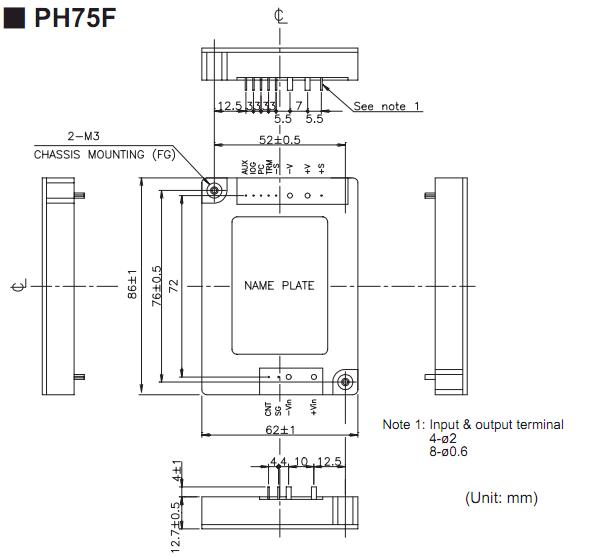

PH75F48-5 dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PH75F48-5
PH75F48-5
TDK-Lambda
DC/DC Converters 75W 5V 15A
Data Sheet
0-1: $82.80
1-10: $75.00
