Product Summary

The AL60A-048L-050F20 is a Astec Integrated Power Module.

Parametrics

AL60A-048L-050F20 specifications: (1)Load Regulation: 0.2% typical down to no load; (2)Line Regulation: 0.1% typical; (3)Noise/Ripple: 75 mV typical (output below 5V); 2% typical(output 5V and over); (4)Remote sense: Up to 0.5V; (5)Output Voltage Adjust Range: ±10% of nominal output; (6)Transient Response: 4% typical deviation with 250μs recovery (25-75% full load); (7)Current Share Accuracy: 5% typical; (8)Overvoltage Protection: 125% nominal Vo; (9)Current Limit: 110% Io max; (10)Voltage Adjust: 90 to 110% Vo; (11)Enable: TTL compatible (low to enable); (12)Clock Input(external sync): 3.3 to 5.5Vp-p @ 1MHz ± 10%; (13)Temperature Monitor Output 10 mV/°K (2.73V = 0℃); (14)Current Monitor Output: 0 to 1mA (1mA = 100% Io Rated).

Features

AL60A-048L-050F20 features: (1)High efficiency - up to 86%; (2)500 KHz fixed frequency; (3)100℃ baseplate operating temperature (with no derating); (4)Low output ripple and noise; (5)Excellent transient response; (6)Safety isolated low voltage control and monitoring; (7)High reliability; (8)Wide input voltage range; (9)Parallelable with accurate current sharing; (10)Adjustable output voltage and current limit; (11)Regulation to zero load; (12)Temperature monitor output.

Diagrams

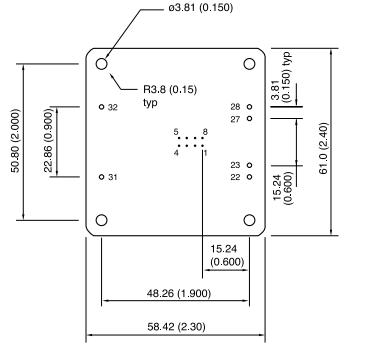

AL60A-048L-050F20 package diemensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

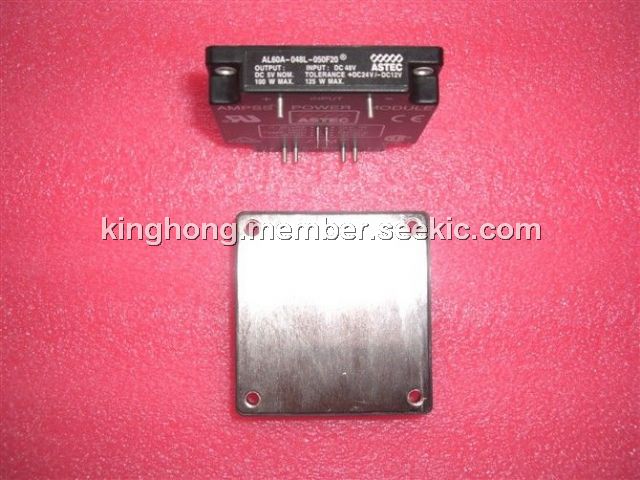

AL60A-048L-050F20
AL60A-048L-050F20


CONV DC-DC 120W 48VIN 5.0V 20A
