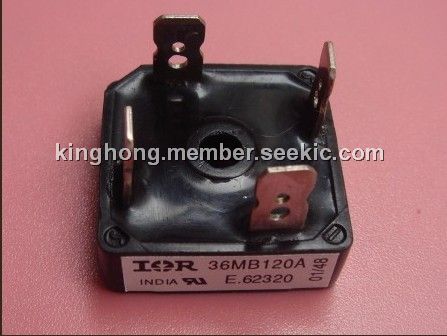

Product Summary

The 36MB120A is a single phase bridge power module. It is intended for use in general purpose and instrumentation applications.

Parametrics

36MB120A general specifications: (1)IO:35A, @TC:55℃; (2)IFSM: @50Hz:475A, @60Hz:500A; (3)I2t: @50Hz:1130A2s, @60Hz:1030A2s; (4)VRRM range:1400V to 1600V; (5)Tj:-55℃ to 150℃.

Features

36MB120A general features: (1)Universal, 3 way terminals: push-on, wrap around or solder; (2)High thermal conductivity package, electrically insulated case; (3)Center hole fixing; (4)Excellent power/volume ratio; (5)UL E 62320 approved.

Diagrams

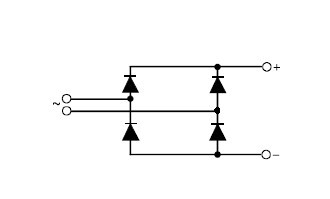

36MB120A circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
36MB120A
36MB120A
Ruttonsha
Bridge Rectifiers 35/28A 1200 Volt
Data Sheet
0-100: $2.27
100-500: $2.09
500-1000: $1.78
