Product Summary

The 1D500A-030A is a building block transistor.

Parametrics

1D500A-030A absolute maximum ratings: (1)VCBO: 400V; (2)VCEO: 400V; (3)VCEO: 300V; (4)IC: 500V; (5)PC: 2500W; (6)HFE: 500min; (7)IC: 500A\VCE: 2V; (8)Swicthing time: 2μsec; (9)package: BBTIV; (10)Net weight: 365grams.

Features

1D500A-030A features: (1)Suitable for motor control applications; (2)High voltage, large current capacity; (3)Vceo: 300 to 1000V; Ic: 100 to 500A; (4)Easily connected in parallel and control currents up to 1200A.

Diagrams

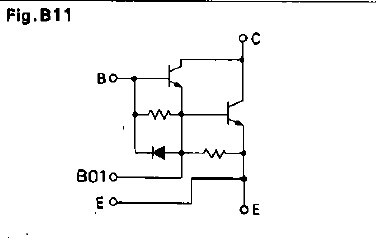

1D500A-030A circuit diagram
