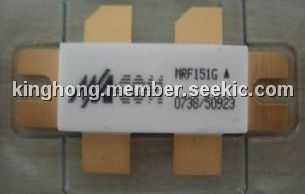

Product Summary

The MRF151G is a RF power field-effect transistor, designed for broadband commercial and military applications at frequencies to 175 MHz. The high power, high gain and broadband performance of the MRF151G makes possible solid state transmitters for FM broadcast or TV channel frequency bands.

Parametrics

MRF151G absolute maximum ratings: (1)Drain-source voltage, VDSS: 125V; (2)Drian- gate voltage, VDGO: 125V; (3)Gate-source voltage, VGS: ±40V; (4)Drain current -continuous, ID: 40A; (5)Total device dissipation at TC= 25℃, PD: 500Watts; derate above 25℃, PD: 2.85W/℃; (6)Storage temperature range, Tstg: -65 to +150℃; (7)Operating junction temperature, TJ: 200℃.

Features

MRF151G features: (1)Output power- 300 W; (2)Gain- 14 dB (16 dB Typ); (3)Efficiency- 50%; (4)Low thermal resistance- 0.35℃/W; (5)Ruggedness tested at rated output power; (6)Nitride passivated die for enhanced reliability.

Diagrams

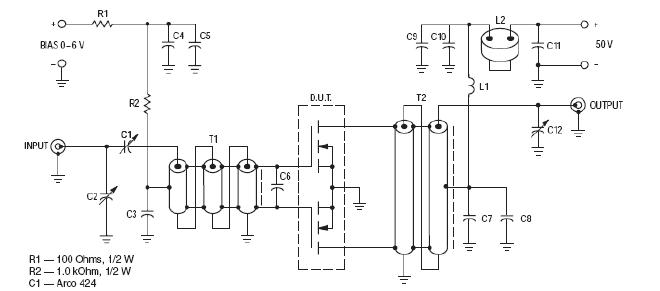

MRF151G circuit diagram
