Product Summary
The 1MBI400L-060 is a IGBT module. The applications of the 1MBI400L-060 include inverter for motor drive, AC and DC servo drive amplifier, uninterruptible power supply, industrial machines, such as welding machines.
Parametrics
1MBI400L-060 absolute maximum ratings: (1)Collecter-emitter voltage, VCES: 600V; (2)Gate-emitter voltage, VGES: ±20V; (3)Collecter current, continuous, IC: 400A; 1ms, ICpulse: 800A; continous, -IC: 400A; 1ms, -LC pulse: 800A; (4)Max. power dissipation, PC: 1600W; (5)Operating temperature, Tj: +150℃; (6)Storage temperature, Tstg: -40 to +125℃; (7)Net. weight: 415g; (8)Isolation voltage, AC.1min, Visol: 2500V.
Features
1MBI400L-060 features: (1)High speed switching; (2)Low saturation voltage; (3)Voltage drive.

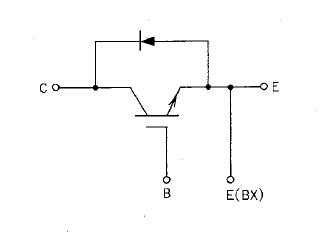

Diagrams
 |
